The connection into the paper department:
1). Choose high-quality steel to make the cardboard height adjustment structure, quickly adjust the various sizes of the box height and the length of the cardboard.
2). The maindrive motor USES high quality and high stability motor from Taiwan.
3). Use computer control and adjustment to make manual operation simple and easy .
4). Manually measure the size of A and B, enter the data and then click the confirmation key to adjust the carton size for theconnection and gluing folding departmentautomatically.
5). The computer has the order storage function. After the cardboard specifications being stored, the storage data equipment can be adjusted automatically according to the data to make it more convenient to use.
The gluing folding department:
1). The variable frequency motor USES TaiwanDongyuan brand, with stable performance, convenient speed regulation and no noise pollution.Decelerating motor adopt TaiwanZhengming brand.
2). The folding departmentUSES the imported high friction, super - wear-resistant special materials to make the seamless ring conveyor belt, and completes the automatic folding of the cardboard accurately.
3).The gluing system choosespray adhesive system system of famous brand Keqi, whichcansave the glue and durable, the control precision is high, can control the spray area and the length precisely .
The correcting、stacking outputing department
1）Automatic correction and stacking outputing department with automatic counting, tidy stacking, stacking output ,and the output of the finished box can be set according to the customer's requirement.The speed of stacking can be controlled ,the piling speed is 130m/min.
2)The falling position of the carton is equipped with a strong blower device for preventing the cartons from bouncing
3）The machine is equipped with high - definition surveillance camera, which is helpful for the pront operators to observe the problemson the correction department and make timely corrections to special situations. The monitor USES a 19 inch LCD TV set of CHANGHONG brand.
Control instrument department:
Simple touch screen input, the whole machine adopts PLC computer programming controller, digital operation, touch screen input data, which can realize non-stop change data, production speed and so on, the machine automatically feeding, automatic folding, automatic counting, automatic stacking output,Theaveragegluing speed is170m/min, the economical speed is150m/min;

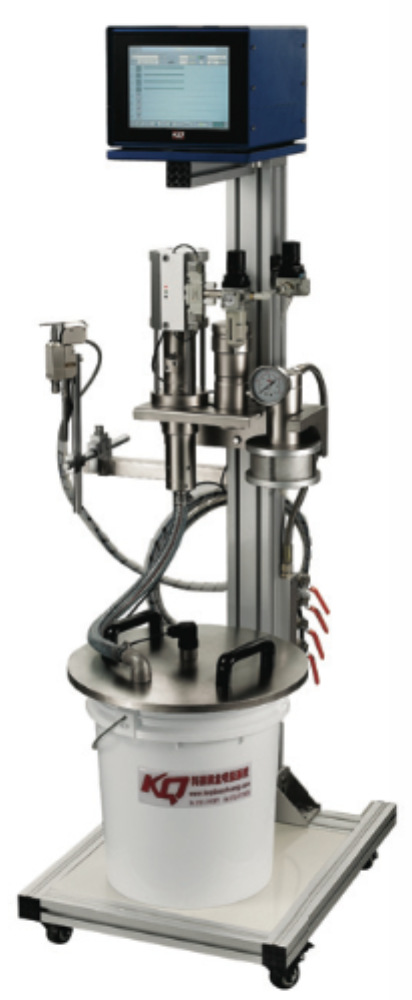

The gluing department
1) Good control the cost. Precision in mm at any speed, spray cold/hot melt adhesive on the gluing flap of folding carton, decrease the cleaning and installation time maximum during the production process, reduce the waste.
2) It applies today's most advanced 32-bit processor and optimized software algorithms to realize gluing spray on the folder gluer from 0 to260m/min speed.
3) Can choose spray in dots or lines to achieve minimum amount of adhesive and strongest gluing strength.
4) User-friendly graphical interface equipped with 8inch touch screen, makes the operator understand easily, simple and convenient.
5) High-precision electronic control system ensures stable and reliable output glue pressure.
